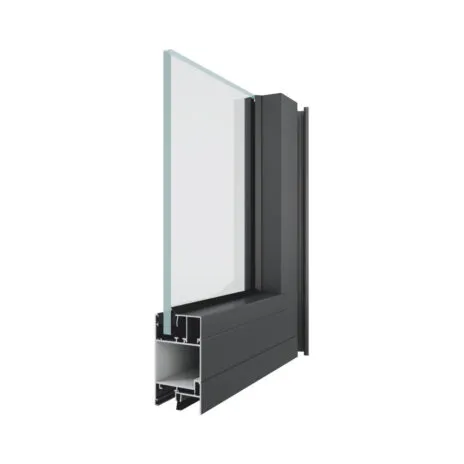

YAWAL PBI 50

The system is used to make non-thermal insulating partitions and structures for internal development, such as swing doors, serving windows, non-load-bearing partition walls, display cabinets and boxes.

The depth of the profile (50 mm) makes it one of the strongest on the market in this group. The system has technological solutions carried over from the previously introduced ‘warm’ PI 50N system based on rebate hinges. Accessories and fittings are a common feature of these systems. The unification introduced allows constructions to be made quickly, eliminating the possibility of prefabrication errors.

Advantages of the system

the possibility of making smoke-proof structures,
the possibility of creating swing doors and feeder windows,
possibility of making curved structures,
walls can be made at any angle,
large structures are possible thanks to a wide range of profiles (including reinforced posts),
inward and outward opening, all-glass, single and double-leaf doors can be constructed,
all-glass construction possible.
Can be combined with other Yawal systems.

Technical specifications

Air permeability	Operational strength	Mechanical durability	Smoke-proof	Sound insulation	Technical approval
class 2 wg PN-EN 1227	class 2 wg PN-EN 12046-2:2001	class 5 wg PN-EN 12400:2004	class S_aS200 wg PN-EN 13501-2+A1	Rw=22-32 dB wg PN-B-02151-3	AT-15-6924/2016

System characteristics

	Window construction depth		Glazing bead height	Glass thickness
(mm)	PO*	PS*
Windows	50	57	20/22	6÷43
Feeder windows	50	21,8/45,5	20	4÷6,4
Doors made of window profiles	50	57	20/22	4÷43
Swing door	50	50	20/22	4÷34
Standard doors	50	50	20/22	4÷34
Suspended doors	50	50	20/22	6÷34
Folding doors	50	57	20/22	6÷43
