MOREVIEW YAWAL

Large sliding door system with narrow profiles completely concealed in the floor, walls and ceiling.

Moreview makes it possible to construct doors with a maximum height of up to 4 m and a maximum weight of 1,200 kg for sliding sashes. The aesthetics of the construction are supported by, among other things, a visible mullion width of only 27 mm at the exit of the sashes. The innovative design allows glass panes to be installed side by side without any aluminium components visible from the outside. The static mullion makes it possible to create a sequence of fixed glazings, while the all-glass corner allows them to be joined at any angle.

UNLIMITED DESIGN POSSIBILITIES

The static mullion allows a sequence of fixed glazing to be constructed, which can additionally be joined at any angle thanks to the all-glass corner. Independent MV structures can in turn be joined at 90°. The system also provides for the possibility of creating a ‘pocket door’, which, when opened, fully retracts into the wall of the building in a specially designed ‘pocket’, maximising the passage light when the wings are opened.

COMFORT AND FUNCTIONALITY

Moreview doors have options for manual or automatic control, the control mechanism for the opening process can be hidden or mounted on the outside of the structure, as required. As part of the automation, the door can be controlled from, for example, a smartphone. The solution also features such amenities as a threshold-free design and a linear drainage system integrated into the frame, which efficiently drains water from the structure.

EASY TO INSTALL AND SERVICE

The system provides for the possibility of glazing with single and double glazing packets on the outside of the building, which greatly simplifies installation, given the dimensions of the glazing. On the other hand, the design of the running gear within the Moreview system allows it to be serviced by replacing the running rollers without having to remove the heavy door leaves.

SYSTEM CHARACTERISTICS

Maximum weight of manually sliding sash	400 kg
Maximum weight of automatic sliding sash	1200 kg
Maximum weight of fixed sash	1200 kg
Maximum construction height	4000 mm
Maximum sash width	4000 mm
Glass thickness	50-60 mm

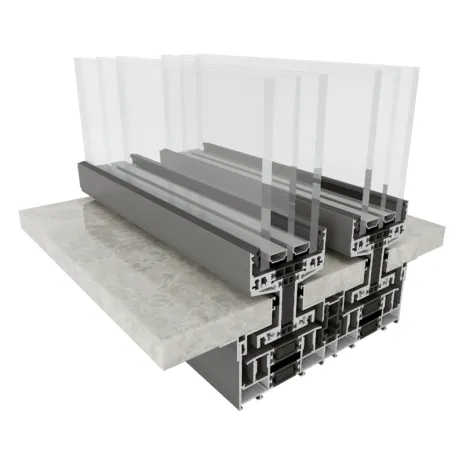

Construction depth for double-track rail	192 mm
Construction depth for three-track rail	294 mm
Structural depth of the sash	72 mm
Visible connection width of sliding door leaves	27 mm

TECHNICAL SPECIFICATIONS

Air permeability	class 4 wg PN-EN 12207
Waterproof	class 9A wg PN-EN 12208
Wind load resistance	class C4 wg PN-EN 12210
Heat transfer coefficient	U_w from 0,7 W/m²K
Burglary resistance	class RC2
Sound insulation	Rw 42 dB
Impact resistance	class I5/E5 wg PN-EN 14019
Gaskets	EPDM, TPE
