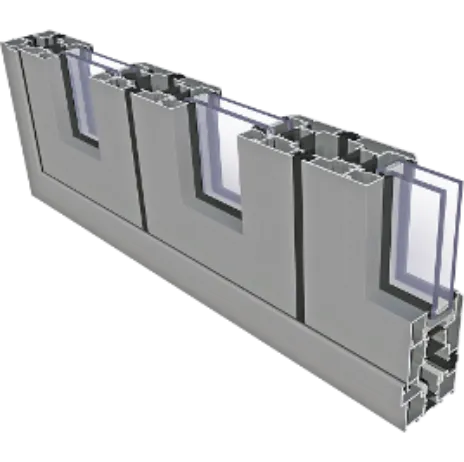

PANORAMA ALIPLAST (folding)

three chamber thermally insulated door system for the construction of folding doors enabling the arrangement of wide open passages
two types of threshold system can be used: a flat threshold system with a brush seal, and a sealed threshold based on a complete frame along the perimeter of the entire terrace window
depending on the requirements and application, the Panorama system offers inward- and outward-opening constructions in a wide range of leaf configurations (2+1,3+2,3+3)
New integrated hardware: hinge with bottom carriage, hinge with catch and low handles improve the functionality of the construction; at the same time they reduce the size of the folding door construction
the minimised visual width of the profile used in the system makes the folding door structure appear lightweight
Panorama system available in a variant with increased thermal insulation – thanks to the use of additional thermal inserts along the perimeter and between the door leaf spacers as well as the door frames; available options: Panorama, Panorama i+
the folding door system makes it possible to create aesthetically pleasing and functional buildings that are comfortable for users, while at the same time making very efficient use of the space in the building
the wide range of available solutions and potential applications make it possible to design structures such as balcony, terrace or conservatory structures, or structures suitable for public and commercial buildings
Painted in RAL (Qualicoat 1518), wood grain Aliplast Wood Colour Effect (Qualideco PL-0001), anodized finish (Qualanod 1808), also bi-colour possible

PRODUCT SPECIFICATION

SYSTEM	MATERIAL	FRAME DEPTH	SASH DEPTH	THICKNESS OF GLAZING	WING WEIGHT	DOOR TYPE
DV	aluminium / polyamide	74,5mm	74,5mm	16-50mm	to 100kg	folding doors
DV i+	aluminium / polyamide	74,5mm	74,5mm	16-50mm	to 100kg	folding doors

TECHNICAL DATA

system	thermal insulation Uf*	air permeability	wind load	waterproof
DV	Uf from 1,68 W/m2K	class 2; PN-EN 12207	C1 (400Pa); PN-EN 12210	class E1050; PN-EN 12208
DV i+	Uf from 1,33 W/m2K	class 2; PN-EN 12207	C1 (400Pa); PN-EN 12210	class E1050; PN-EN 12208
