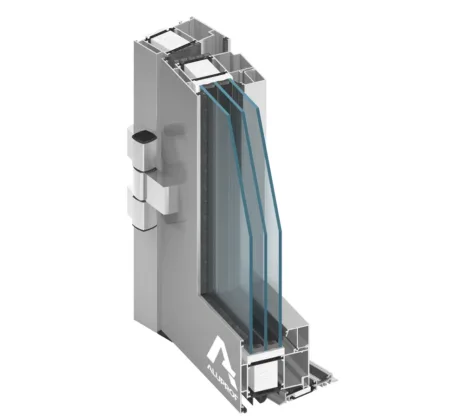

ALUPROF MB-104 Passive

Send enquiry

The MB-104 Passive window and door system with thermal break, thanks to its exceptionally high insulating capacity, meets all the criteria for components used in passive constructions, which is confirmed by certificates from the PHI Darmstadt Passive House Institute. This system is used to create external architectural building elements such as various types of windows, doors, vestibules, showcases and spatial structures. It is characterised not only by excellent thermal insulation, but also by excellent sound insulation, water and air tightness and high structural strength.

FUNCTIONALITY AND AESTHETICS

windows with certificates from the Darmstadt Passive House Institute for the MB-104 Passive SI and MB-104 Passive Aero versions
above-standard airtightness and insulation parameters
wide glazing range up to 81 mm
Euro grooves allow the installation of most of the available fittings for both aluminium and plastic windows.
Possibility to use surface, roller or concealed hinges
door leaf expansion joints
95 mm wide threshold – same width of threshold and frame
burglar-proof windows and doors up to class RC3

TECHNICAL DATA AND PARAMETERS

TECHNICAL DATA	MB-104 PASSIVE
Frame depth	95 mm
Wing depth	95 mm
Glazing thickness	27 – 72 mm
Max. wing dimensions (H×L)	H to 3000 mm, L to 1400 mm

TECHNICAL SPECIFICATIONS	MB-104 PASSIVE
Air permeability	class 4, EN 12207
Waterproof	class E1200 Pa, EN 12208
Thermal insulation	U_D from 0,66 W/(m²K)***
Wind load resistance	class C4/B5, EN 12210
Burglary resistance	class RC1 to RC3, EN 1627

*** – U_D MB-104 PASSIVE Aero doors with sash size 1400×3000 mm, with glass U_g=0,5 W/(m²K)

Examples of heat transmission coefficients U_D

SECTION A OR B	Value U_D [W/m²K]
	Glazing with warm distance frame		Panel G=60mm
	Dual chamber		Panel G=60mm
	U_g=0,5	U_g=0,7	U_p=0,55
MB-104 Passive SI	0.88	1.01	0.87
MB-104 Passive SI+	0.76	0.88	0.72*
MB-104 Passive AERO	0.71	0.84	0.70
