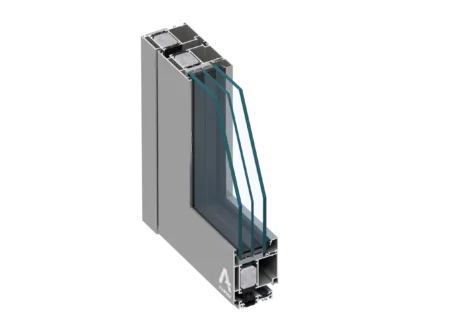

ALUPROF MB-86N

Send enquiry

The MB-86N window and door system is characterised by unique parameters, making it possible to meet the various expectations of users. The structural profile is available in two variants, adapted to the requirements of energy saving: ST and SI. The system is distinguished by its excellent thermal insulation and airtightness parameters.

Another advantage of the MB-86N system is the high strength of the profiles, which makes it possible to realise constructions of large scale and weight. There are also versions of MB-86US concealed sash windows, as well as the MB-86 Casement outward opening window system with thermal insulation. MB-86B was specially designed to meet the requirements of the Belgian market.

U_W from 0,62 W/(m²K)*

FUNCTIONALITY AND AESTHETICS

the large range of sections guarantees the required aesthetics and strength of the structure
wide thermal breaks with a new design to significantly improve thermal insulation
two-component central gasket perfectly seals and thermally insulates the space between the sash and the frame
Glazing beads available in three variants: Standard, Prestige and Style
profile shapes suitable for installation of various types of envelope fittings, including concealed hinges
wide glazing range allows all common types of double-glazed, acoustic or burglar-proof glass to be used
Profile drainage available in two variants: traditional or concealed
burglar-resistant constructions up to class RC4

Temperature distribution of the MB-86N SI+ door

Technical data and parameters

TECHNICAL DATA	MB-86N
Frame depth	77 mm
Wing depth	77 mm
Glazing thickness	frame: 8,5 do 61 mm
Max. wing dimensions (H×L)	H to 3000 mm L to 1400 mm
Solutions	Single and double doors opening outwards and inwards

TECHNICAL SPECIFICATIONS	MB-86N
Air permeability	class 4, EN 12207
Waterproof	class E1350 Pa
Thermal insulation	U_D from 0,80 W/(m²K)***
Wind load resistance	class C5 (2000Pa), klasa B5 (2000Pa) EN 12210
Impact resistance	–
