YAWAL 77HI PRESTIGE

Send enquiry

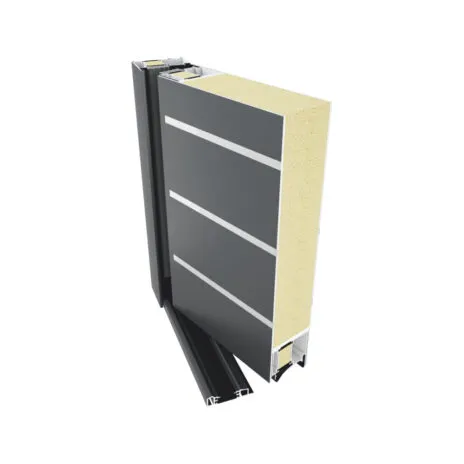

TM 77HI Prestige is a top quality entrance door system for single or multi-family homes.

The solution allows the sashes to be flush with the frame (invisible sash profile) or flush on one side. Thanks to the use of the 3-chamber thermal insulation system and innovative thermal separators, the product is characterised by excellent thermal properties and elimination of thermal stresses caused by temperature differences. This system allows energy consumption to be reduced, thus lowering the running costs of the house. The panel door system is compatible with the TM 77HI window system, which makes it possible to create structures in various configurations.

Advantages of the system

high aesthetics thanks to concealed hinges, product available in different versions:

-with panel facing on one side,

-with panel faced on both sides,

choice of insulator or central seal,
quick and easy installation,
possibility to use panels of any design with stainless steel applications and decorative milling,
high thermal insulation,
colour fastness, easy to clean,
wide choice of colours – RAL, structural and wood-effect colours,
Can be combined with other Yawal systems.

Technical specifications

Waterproof	Air permeability	Sound insulation	Heat transfer coefficient	Burglary resistance
class 7A wg PN-EN 12208	class 4 wg PN-EN 12207	R_w = 33 dB wg PN-EN ISO 140-3	U_f = from 1,1 W/m²K wg PN-EN ISO 10077-2	RC2, RC3

System characteristics

Door construction depth	Frame profile	77 mm
Door construction depth	Wing profile	77 mm
Panel thickness	30÷77 mm
Maximum wing weight	250 kg
Maximum door dimensions	Single-winged	1300 mm x 3000 mm (width. x height.)
Maximum door dimensions	Single-winged with fanlights and overlights	4028 mm x 2750 mm (doors 2400 mm x 2800 mm) (width. x height.)
