ALIPLAST Genesis 75

Send enquiry

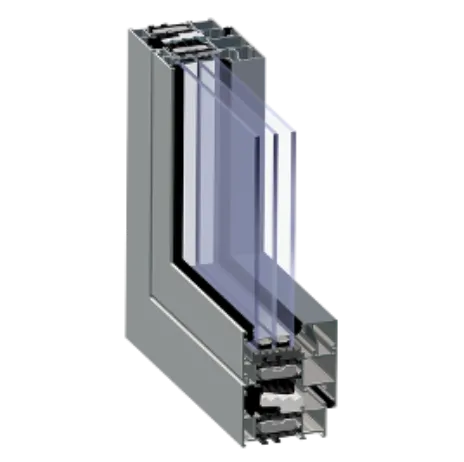

ALIPLAST Genesis 75 aluminium profiles are used in the design of windows for residential and public buildings. These are high-end profiles that guarantee high energy efficiency and excellent thermal performance.

The key features and characteristics of this system are:

three-chamber system for windows and doors intended for construction of windows with increased thermal insulation
Excellent thermal performance of the Genesis 75 window (Uw from 0.90)
75 mm deep frame sections
the large range of Genesis 75 sections/profiles enables the design of modern windows, doors and showcases with high functionality
additional thermal seal to ensure very high window tightness (air infiltration, water tightness) and innovative design and aesthetics
choice of different profile finishes (also renovation profiles), giving the window structure its individual character
all-glass corner connection possible at 90 degrees
Genesis OUT option available (Genesis OUT i, Genesis OUT i+) – windows opening outwards
wide range of colours – RAL (Qualicoat 1518), structural colours, wood-effect colours Aliplast Wood Colour Effect (Qualideco PL-0001), anode (Qualanod 1808), bi-colour
Genesis 75 also allows for door constructions

Go to doors in GENESIS 75 system

PRODUCT SPECIFICATION

system	material	frame depth	sash depth	thickness of glazing	type of windows	door type
GN 75 window	aluminium / insulation material	75 mm	84 mm	fix 1 – 56 mm / 9-65 mm	walls, fixed, tilt-and-turn windows	–
GN 75 doors	aluminium/polyamide	75 mm	75 mm	1 – 59 mm	–	single-leaf, double-leaf, opening outwards , opening inwards, panic doors

TECHNICAL DATA

Genesis 75

system	thermal insulation Uf*	air permeability	wind load	waterproof
GN 75 window	Uf from 0,84 W/m²K	Class 4; PN-EN 12207	Class C4 (2400 Pa); PN-EN 12210	E2400 (2400Pa); PN-EN 12208
GN door	Uf from 1,625 W/m2K	Class 4; PN-EN 12207	Class C5 (2000Pa); PN-EN12210	E1200 (1200Pa); PN-EN 12208
GN i+ door	Uf from 1,195 W/m2K	Class 4; PN-EN 12207	Class C5 (2000Pa); PN-EN12210	E1200 (1200Pa); PN-EN 12208
