Aluminium facades

REYNAERS ConceptWall 50

Send enquiry

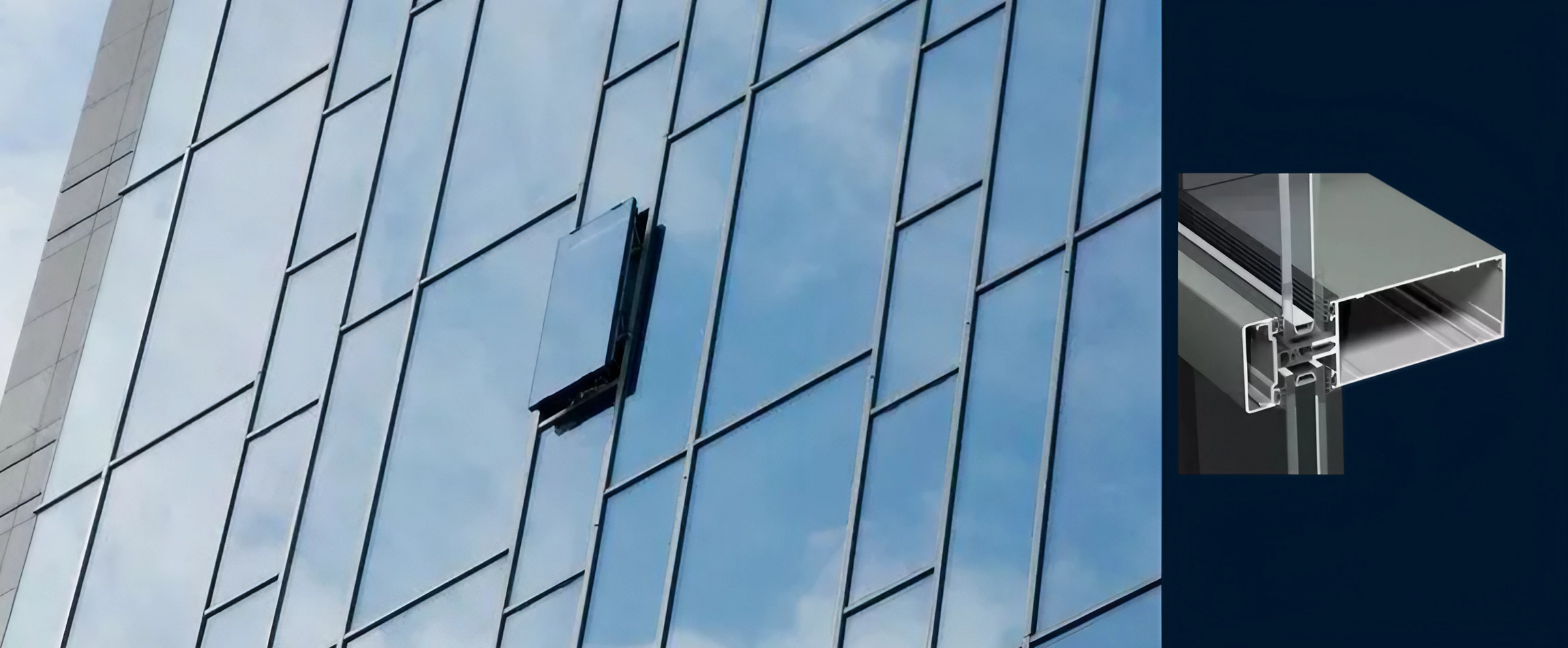

ConceptWall 50 is an advanced facade and roof system that offers unlimited design freedom and maximum interior illumination. Thanks to a wide range of available construction variants and glazing methods, this system meets the highest requirements of contemporary architecture.

Versatility and design flexibility

The ConceptWall 50 system enables the realization of various architectural projects, both internal and external. Three main glazing methods are available: standard pressure plates, structural glazing, and mechanical fixing of glass directly to the supporting structure. This diversity allows for adapting the facade to individual aesthetic and functional needs.

Excellent thermal and energy parameters

ConceptWall 50 is characterized by high thermal insulation, making it a suitable solution for passive and low-energy buildings. The possibility of using triple glazing further increases energy efficiency, contributing to lower building operating costs.

Safety and fire resistance

The system also offers variants with increased fire resistance, allowing for the creation of strategically placed fire-resistant zones where required. This ensures that ConceptWall 50 provides not only aesthetics but also user safety.

Cover caps

Match the finish perfectly with your building’s architecture.

Sloped

Allows for any wall inclination, adapted to the project.

Skylight

Modern solutions for roof windows, providing natural light.

Sun blinds

Effective solution supporting passive interior cooling.

Available options depend on the profile choice and configuration

Integration with other systems and functionality

ConceptWall 50 can be easily integrated with other solutions such as parallel projected windows, outward opening windows, or flat roof ventilators, which increases the functionality and comfort of building use.

Summary

ConceptWall 50 is a versatile facade system that combines modern design with excellent technical parameters. Its flexibility, high thermal insulation, and the ability to integrate with other systems make it an ideal choice for contemporary architectural projects aiming to combine aesthetics with functionality.

Technical details

  • Thermal insulation
    Passive Uf=0.56 W/m2K
  • Airtightness
    High
  • Acoustics
    Extreme
  • Glass weight
    Max 700 kg
INFINITE POSSIBILITIES

Discover all variants

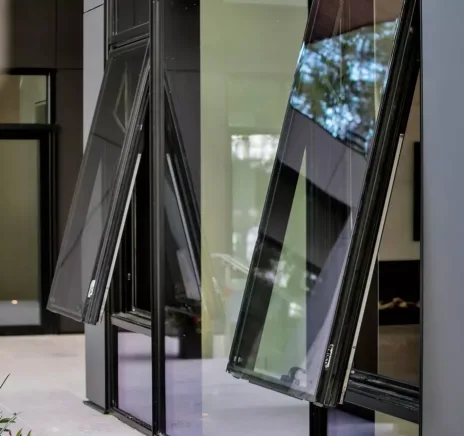

The roof window allows for the installation of opening elements on the building’s roof.
This product is available in a wide range of inward and outward opening elements.
All-glass curtain wall thanks to mechanical fixing of glass packages.
This variant uses the same profiles for mullion and transom functions for increased efficiency.
This is the standard variant of the most versatile curtain wall in our offer.
The steel solution utilizes the versatility of the ConceptWall 50 system and the strength of steel.
This variant uses cover caps between floors and silicone joint finishing between panels.
All-glass curtain wall thanks to the use of glass packages glued to profiles.
This variant is characterized by narrow profiles on the outside and inside, creating a distinctive style.
This variant uses silicone joint finishing between floors and cover caps between panels.
The highly insulated variant of the stick facade achieves thermal insulation levels at the passive building level.
If your project needs fire protection, use this variant to create strategically placed fire zones.
